Lotus genuine parts and spares Lotus Esprit S1 and S2, Front Suspension, Wishbones and Lower Links

Genuine and own brand, car spares, parts and accessories for Lotus Front Suspension, Wishbones and Lower Links, Lotus Esprit S1 and S2



Search parts & accessories



Search manuals

Search for parts

Enter a description. Or, a full or partial Lotus part number.
If you do not know the part number, use the search boxes below.

Select your model:
To search the entire Lotus part number database, do not select a model.

You may find it useful to refine your search by selecting a part section.

Refine your search by selecting a component group.

Below is a list of parts matching your search. You can refine your search further, by using the model, section and component boxes above.

Description
Hints and Tips
Part Number
Unit
£
Quantity
A079C4038J
EACH
£24.77
Hints and tips for l/h top wishbone including bushes

These are used top wishbones, refurbished with new original rubber bushes fitted, ready to fit.

A079C6003F
EXCHANGE
£72.79
Hints and tips for r/h top wishbone including bushes

These are used top wishbones, refurbished with new original rubber bushes fitted, ready to fit.

A079C6004F
EXCHANGE
£72.79
A079C6005F
EACH
£28.66
A079C6006F
EACH
£32.94

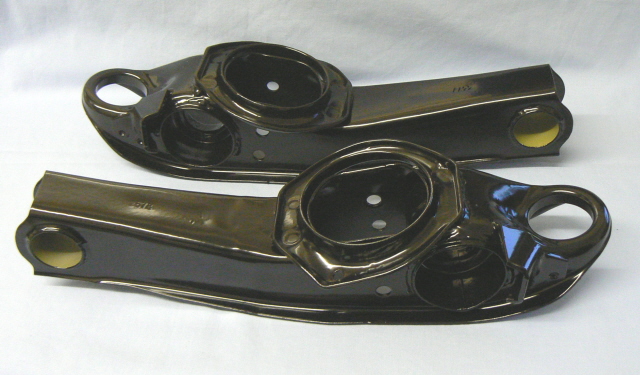

Hints and tips for pair of modified and refurbished lower front wishbones

In 1977/8 Lotus found that the inner bush, which came with the lower wishbones, they purchased from Opel, were not suitable for use on a Lotus. From approximately 1978 all the wishbones fitted to the Esprit, were modified from the Opel specification, to accept the far superior bush used on the Elite/Eclat range and all Esprit models up to 2004. The modification involves machining out the steel bush housing and welding in a new, larger bush housing tube. The pair of wishbones are then blasted and power coated, gloss black. This new bush housing will then accept the original Lotus bushes for the Esprit A079C4038J, or the polyurethane replacements we also sell, SJ079C0021. This modification is very important. The Opel bush is useless. Lotus were still paying to have the lower wishbones changed under warranty in 1988, I did several. To identify if you have the modified wishbones, look to see how the bush housing tubes are fitted. The Opel ones are just pressed in. The modified ones are welded. The appearance of the bush is different as well. The Opel bush has a different shape at the front and rear of the wishbone, the Lotus one is symmetrical. Steve

SJ079C0004
PAIR
£295.00

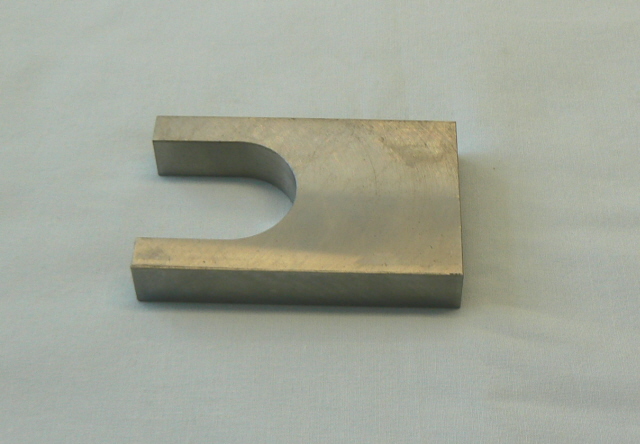

Hints and tips for tool for inserting top wishbone bush

As the original front wishbone bushes are pushed in, the pressing will deform unless supported. This fork will keep the pressing in shape.

SJ746
EACH
£25.00
